Custom Precision Ceramic Components for Power Electronics
Custom industrial ceramic parts for electrical insulation, thermal management and demanding power electronics applications.
Why Are Technical Ceramics Used in Power Electronics?
Technical ceramics are used in power electronics for electrical insulation, thermal transfer, and dimensional stability in power modules and converters. Aluminum nitride (AlN) substrates provide thermal conductivity of 170-190 W/m·K while maintaining dielectric isolation (>10¹⁴ Ω·cm), enabling efficient heat dissipation from IGBT and MOSFET devices. Alumina (Al₂O₃) offers cost-effective electrical insulation with moderate thermal performance for power module housings and bushings. Silicon nitride (Si₃N₄) delivers thermal shock resistance for demanding applications exposed to rapid temperature cycling. Precision machining to ±0.003 mm ensures proper fit in power assemblies, while metallization-ready surfaces (Ra 0.05 μm) support direct bonded copper (DBC) assembly for reliable thermal interfaces.
Ceramic Components for Electrical Insulation and Thermal Management
Korecera manufactures custom precision ceramic components for power electronics applications. Our ceramic parts provide reliable electrical insulation and efficient thermal management in power modules, converters and industrial electrical equipment, manufactured according to customer drawings and technical specifications.
Custom Ceramic Components

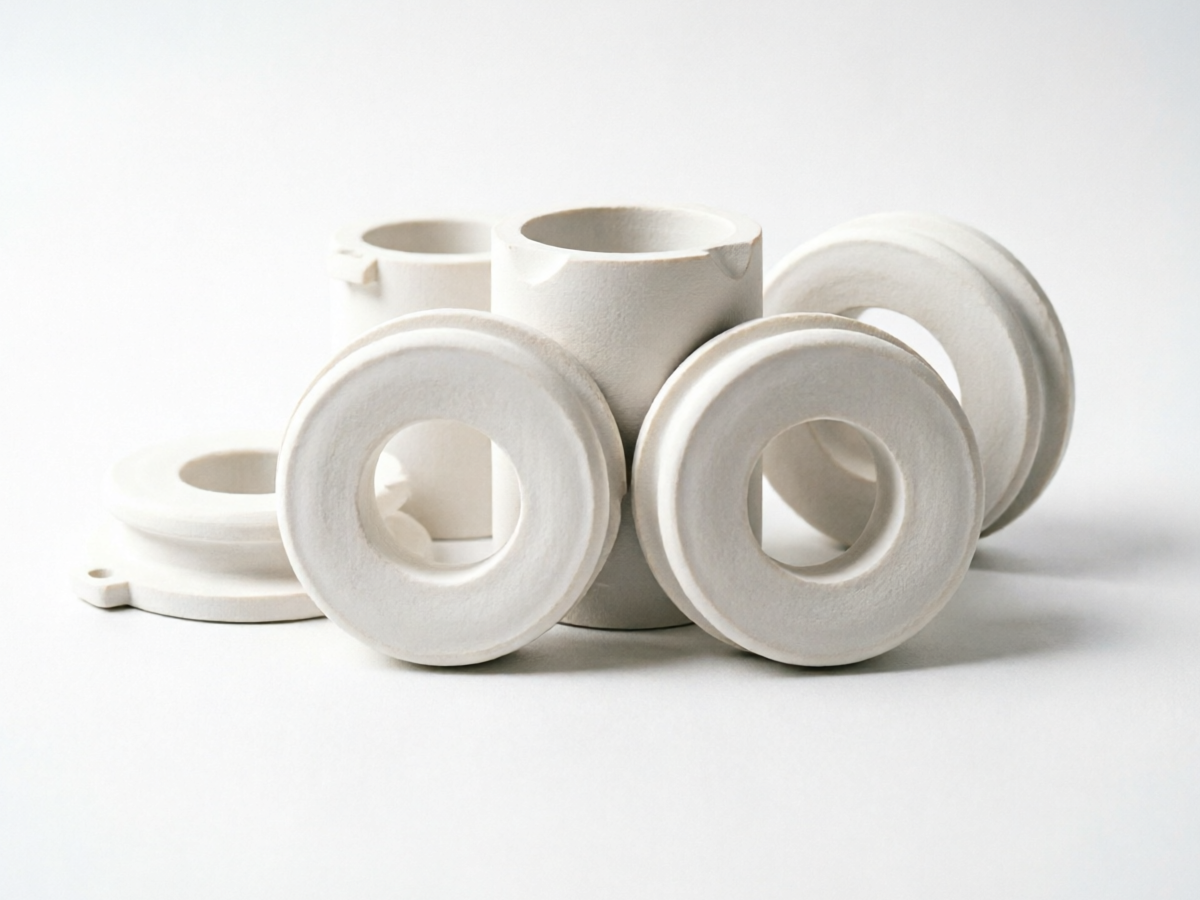

Ceramic Insulating Rings
High-performance insulating rings for power module assemblies.

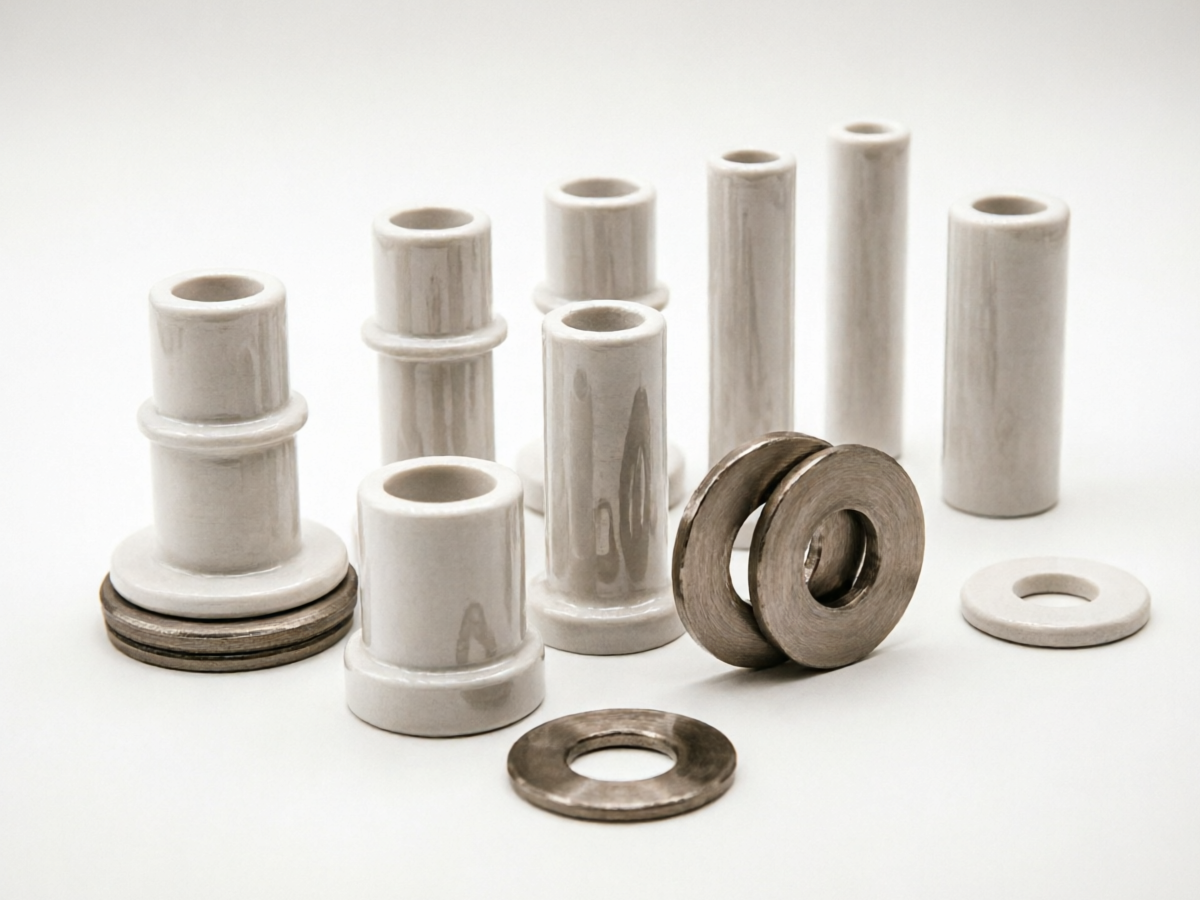

Ceramic Bushings
Precision bushings for electrical insulation in power equipment.
Ceramic Sleeves
Custom sleeves for conductor insulation and mechanical protection.
Ceramic Spacers
Precision spacers for maintaining electrical clearances.
Ceramic Standoffs
Custom standoffs for PCB and component mounting applications.

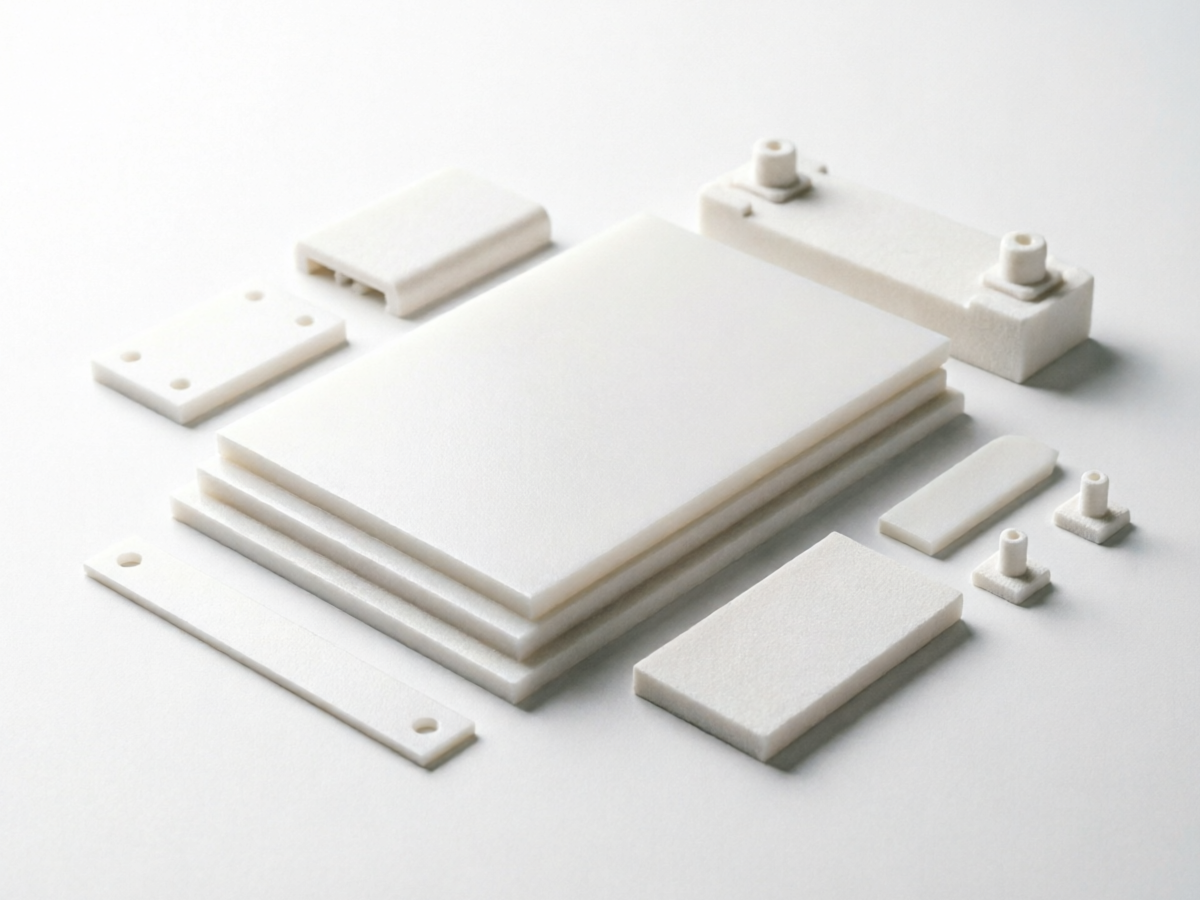

Aluminum Nitride Components
High thermal conductivity components for power electronics cooling.
Ceramic Materials for Power Electronics
Alumina
Excellent electrical insulation and mechanical strength for power modules.
Aluminum Nitride
High thermal conductivity with electrical insulation for heat dissipation.
Silicon Nitride
Superior thermal shock resistance for demanding power applications.
Applications in Power and Electrical Equipment

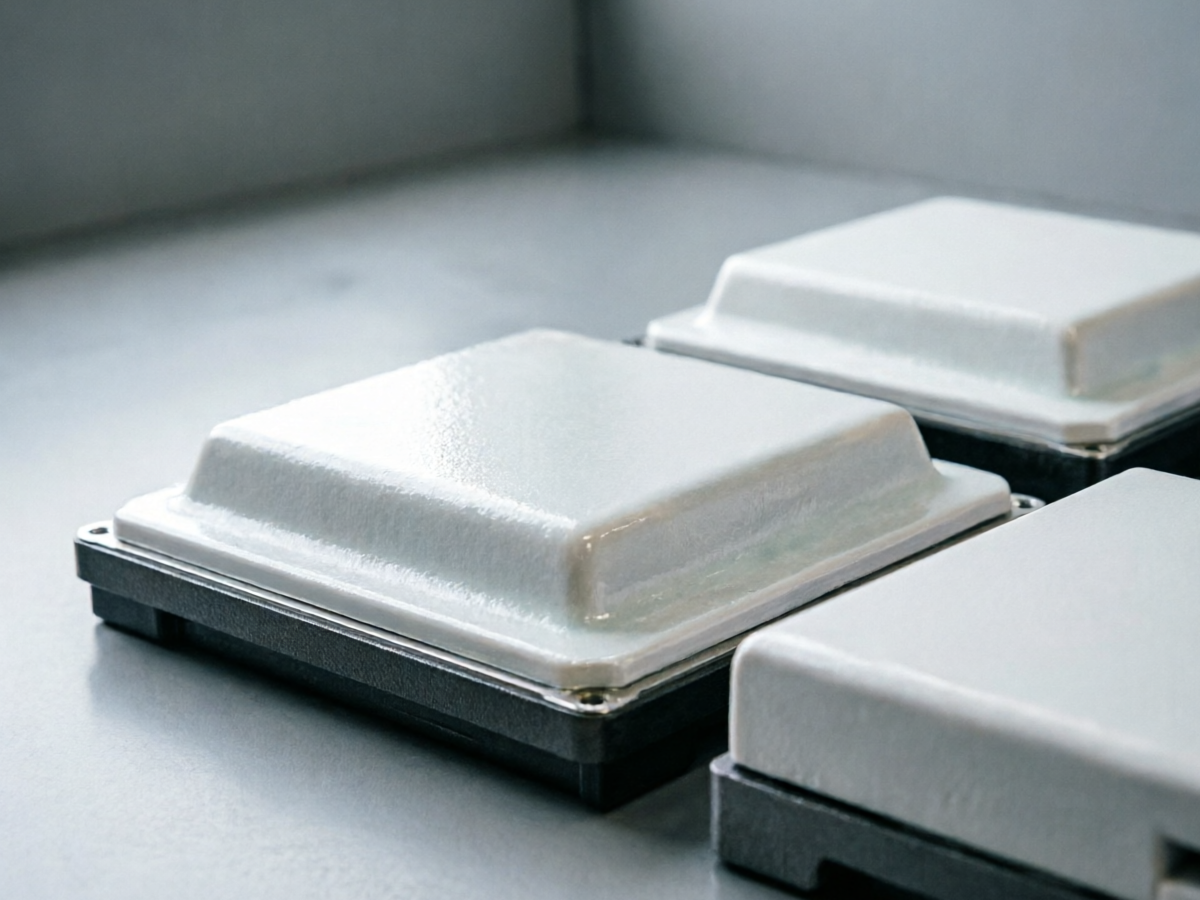

Power Modules
Ceramic insulation and thermal management in IGBT and MOSFET modules.

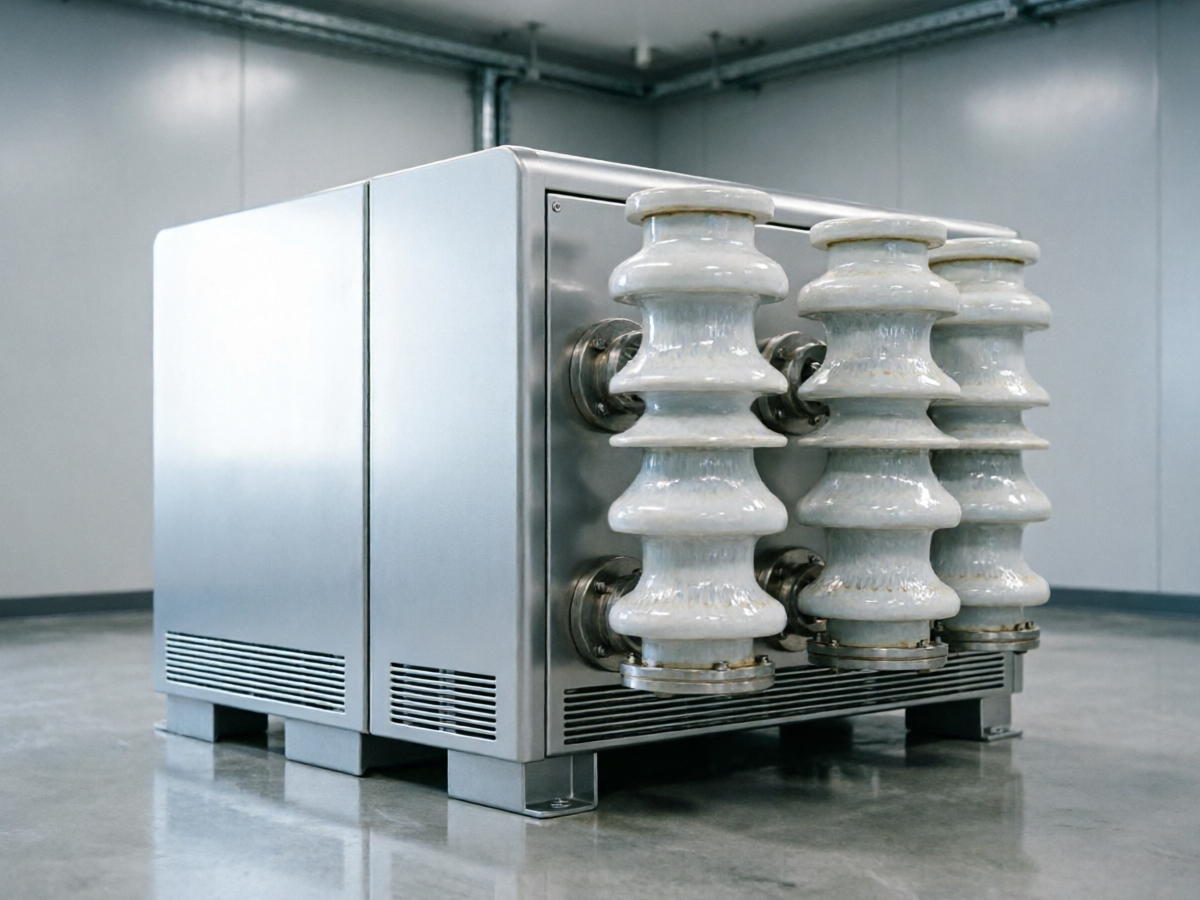

Industrial Power Equipment
Insulation components for transformers, switchgear and converters.
Electrical Insulation Systems
Precision ceramic insulators for high-voltage applications.
Thermal Management
AlN components for efficient heat dissipation in power systems.
Manufactured to Your Specifications
Engineering Drawing
Specification analysis
Material Selection
Optimal ceramic choice
Precision Machining
CNC manufacturing
Inspection
Quality verification

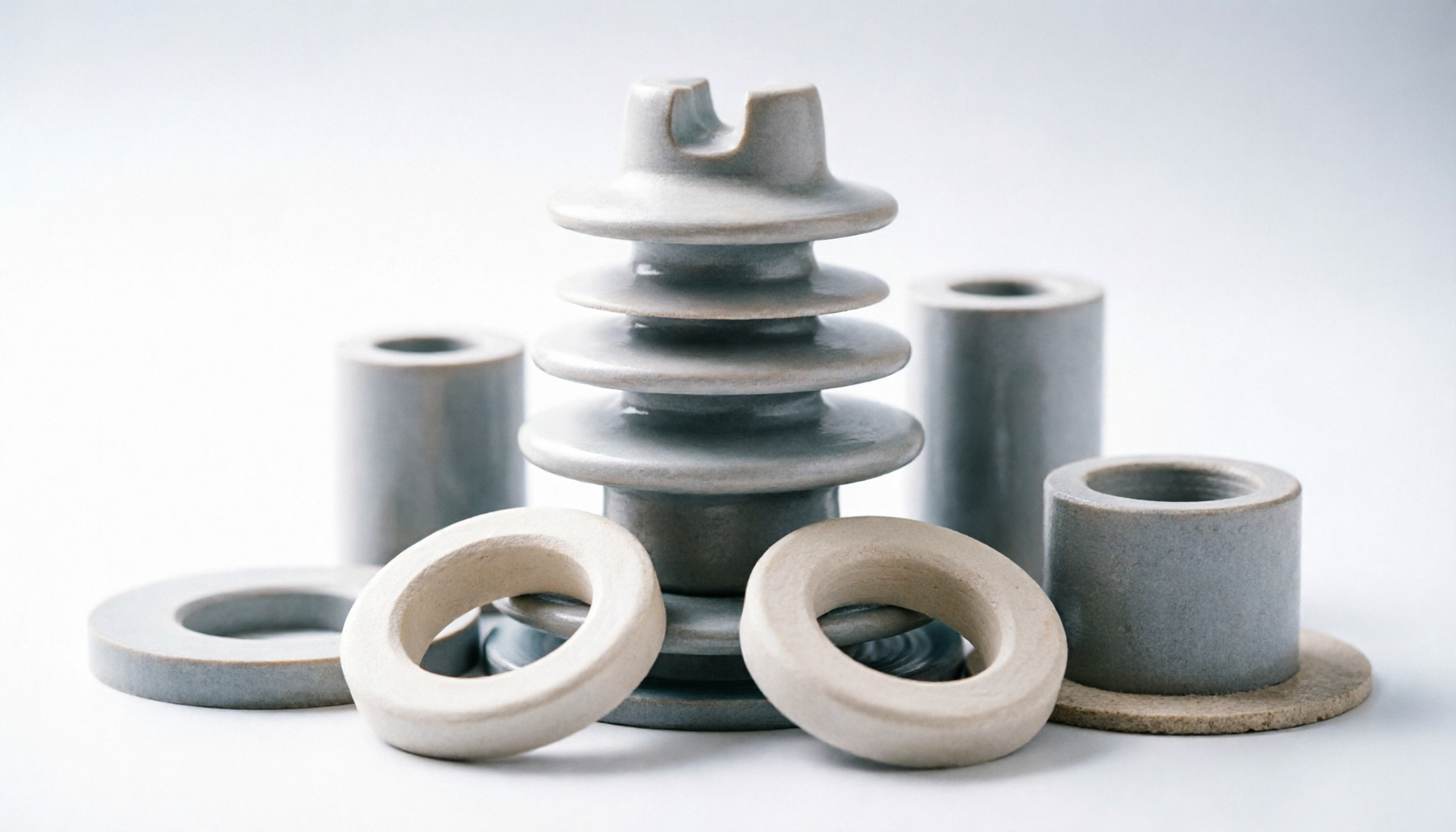

Precision Ceramic Components for Power Electronics
Power Electronics: Material-Property-Function Relationships
How ceramic material properties enable specific functions in power electronics applications
| Material | Key Property | Engineering Function | Typical Component | Manufacturing Consideration |
|---|---|---|---|---|
| Aluminum Nitride (AlN) | Thermal conductivity 170-190 W/m·K | Heat dissipation with electrical isolation | DBC substrates, Heat sinks | Thin substrate machining (0.3 mm), Metallization-ready Ra 0.05 μm |
| Aluminum Nitride (AlN) | CTE 4.3-4.6 ×10⁻⁶/K (Si-matched) | Thermal expansion compatibility with silicon | Chip carriers, Power module substrates | ±0.003 mm dimensional control, Flatness ≤ 0.005 mm |
| Alumina (Al₂O₃) | Volume resistivity > 10¹⁴ Ω·cm | Electrical insulation in high-voltage environments | Insulating rings, Bushings, Standoffs | Precision cylindrical grinding, Tight tolerance control |
| Alumina (Al₂O₃) | Thermal conductivity 27 W/m·K | Moderate heat transfer for thermal management | Power module housings, Spacers | Large-format grinding, Surface finish optimization |
| Silicon Nitride (Si₃N₄) | Thermal shock resistance ΔT ≥ 550°C | Survival during rapid temperature transitions | Thermal cycling components, Severe-service insulators | Complex geometry grinding, Edge quality control |
Engineering Note: Material property values represent typical characteristics. Finished component performance depends on geometry, manufacturing process, and assembly conditions. Korecera manufactures ceramic components per customer drawings—material selection should be validated for specific application requirements.
Need a Custom Ceramic Component?
Send us your drawing or specification for a manufacturing evaluation.
Request a Quote
