Custom Aluminum Nitride Ceramic Parts & Components (AlN)

Custom manufacturing of high-thermal grade Aluminum Nitride components. Combining high thermal conductivity (170–190 W/m·K) with electrical insulation and a relatively low CTE suitable for electronic substrate and thermal-management applications where thermal expansion compatibility is an important design consideration.

Strategic Manufacturing Advantage

Our factory provides precise dimensional controls down to ±0.003 mm for AlN substrates and components, supporting integration into AI hardware and GPU packaging thermal designs.

Key Material Properties

Quantitative engineering data for design validation and material selection

Hardness
HV0.5 ≥ 10 GPa
Moderate structural hardness optimized for precision micro-features
Density
3.25 - 3.30 g/cm³
High density with zero open porosity
Thermal Conductivity
170 - 190 W/m·K
High thermal conductivity approaching metals while remaining dielectric
Dielectric Strength
≥ 15 kV/mm
Exceptional electrical isolation at high computing frequencies
Thermal Expansion
4.3 - 4.6 x10⁻⁶/K
Relatively low CTE compatible with silicon wafer packaging; typical values may vary by grade and test condition
Flexural Strength
300 - 320 MPa
Stable mechanical reliability for high-power thermal modules

Why Choose Aluminum Nitride?

AlN is the premier choice for thermal management in high-power electronics:

  • Silicon-Compatible CTE: Thermal expansion coefficient (4.3 - 4.6 x10⁻⁶/K, typical 4.5 x10⁻⁶/K) is closely compatible with silicon wafers, helping reduce thermal stress in power module packaging. Typical values may vary by grade and test condition.
  • High Thermal Conductivity: 170-190 W/m·K (typical 180 W/m·K) approaches that of many metals while maintaining strong electrical insulation (>10¹⁴ Ω·cm).
  • High-Frequency Performance: Low dielectric constant (εr ≈ 8.8) and minimal dielectric loss tangent make AlN ideal for RF and microwave applications.

Why Is Aluminum Nitride Used for Thermal and Electrical Applications?

Aluminum nitride (AlN) is used for thermal and electrical applications requiring high thermal conductivity (170-190 W/m·K) combined with electrical insulation (>10¹⁴ Ω·cm). Unlike metals that conduct both heat and electricity, AlN transfers heat efficiently while maintaining dielectric isolation, making it suitable for power module substrates and chip carriers. Its CTE (4.3-4.6 ×10⁻⁶/K) is compatible with silicon, reducing thermal stress in electronic packaging. Precision machining to ±0.003 mm enables thin substrates (down to 0.3 mm) with metallization-ready surfaces (Ra 0.05 μm) for DBC assembly in AI hardware, RF infrastructure, and semiconductor processing equipment.

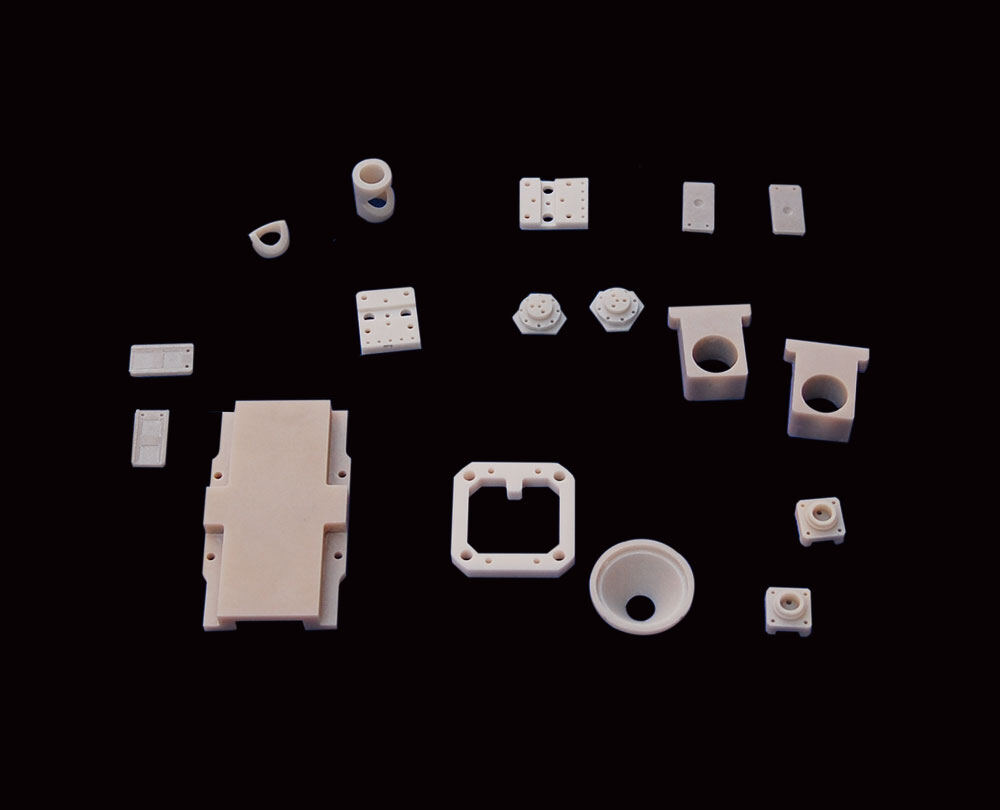

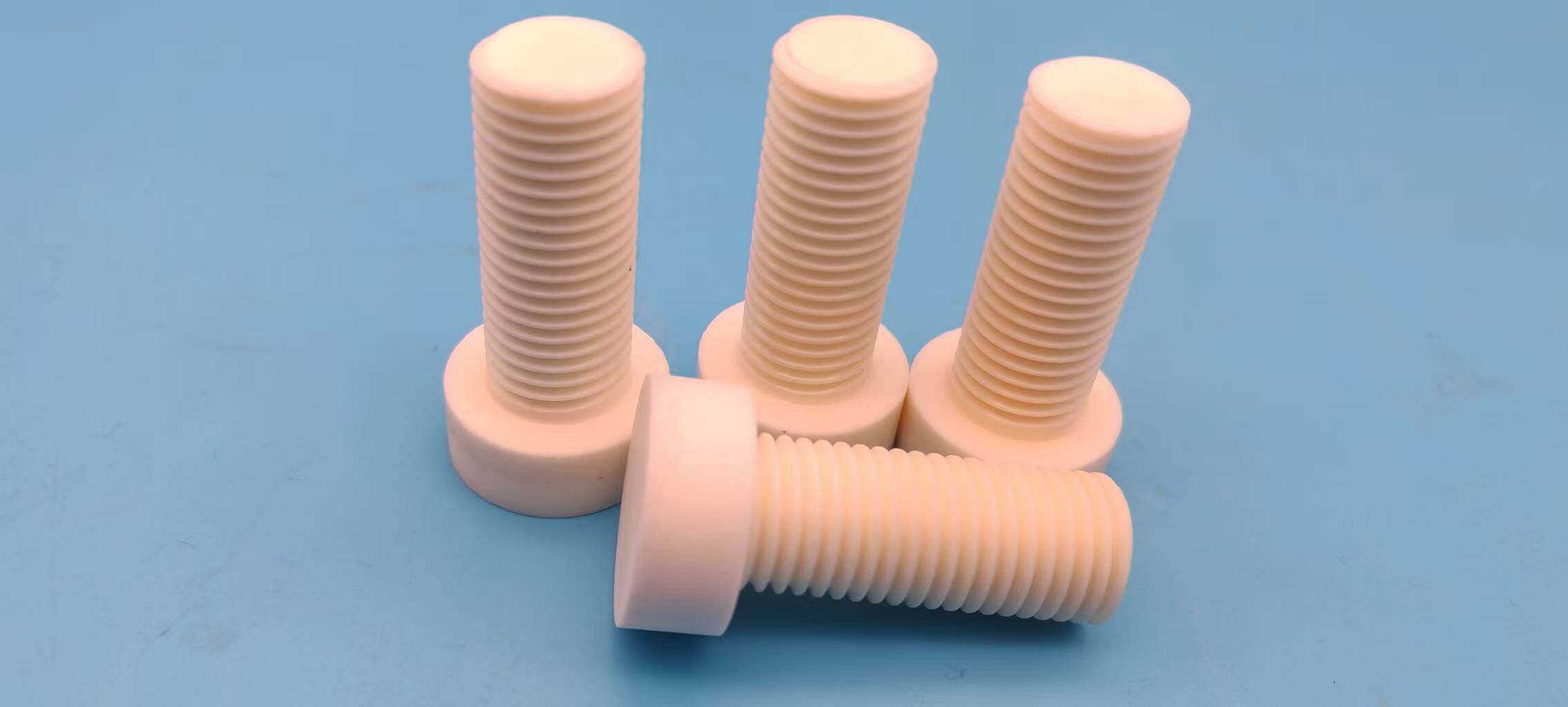

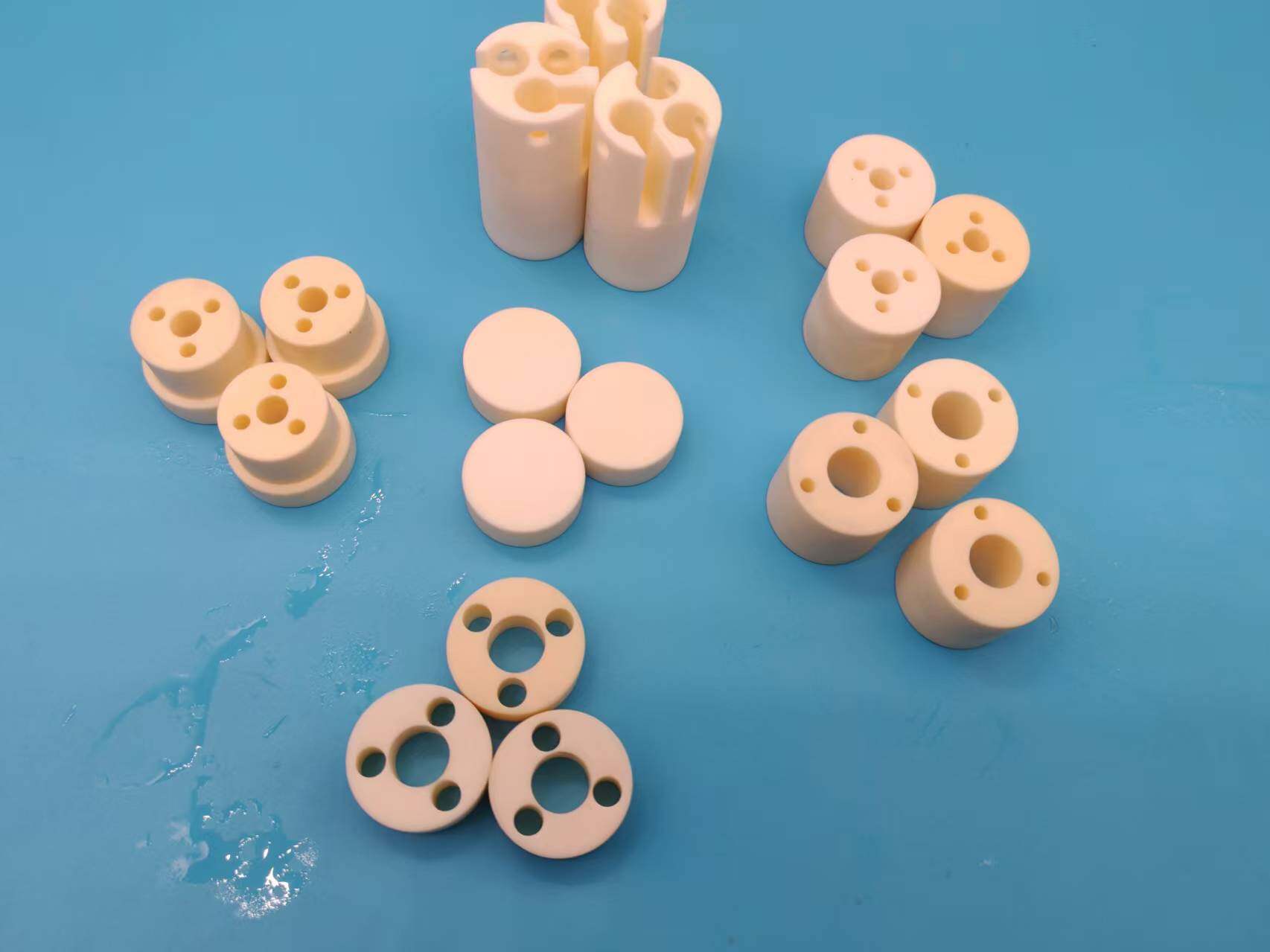

Precision Aluminum Nitride Ceramic Parts

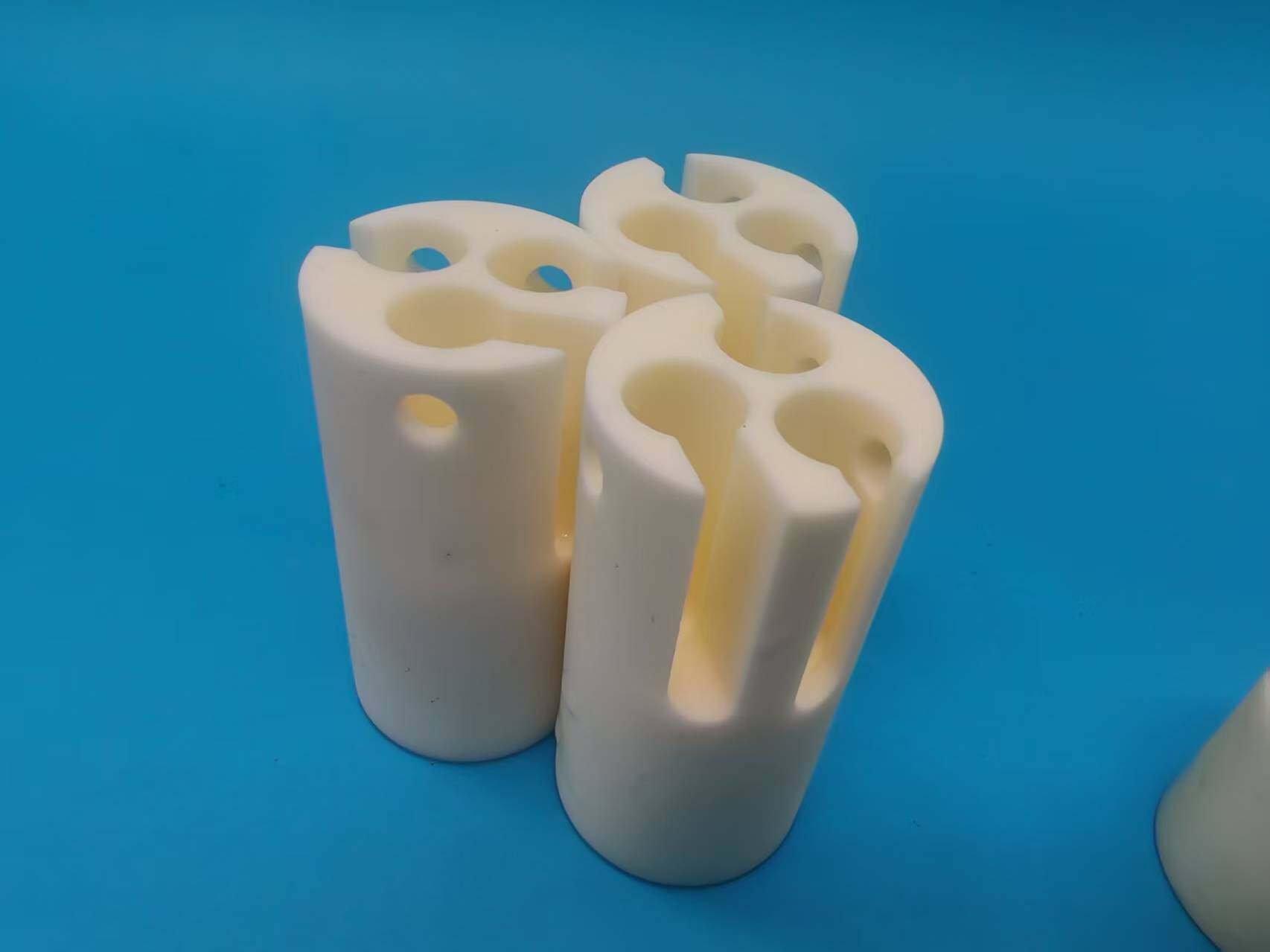

Aluminum nitride ceramic cylindrical components with precision slots
1 / 4

High-Value Applications

Proven performance in AI hardware, RF wireless, optoelectronics, and semiconductor processing

AI Hardware & Computing Infrastructure

  • •High-power GPU/TPU chip carrier submounts
  • •Micro-electronic heat sinks
  • •Thermal blocks
  • •Power module substrates

RF Wireless & Optoelectronics

  • •High-frequency RF wireless infrastructure insulators
  • •Laser diode submounts
  • •Optical transceiver bases
  • •Microwave package headers

Semiconductor Wafer Processing

  • •Precision heater plates
  • •Electrostatic chuck components
  • •Plasma chamber insulating tabs
  • •Wafer stage mirrors

Typical Mechanical & Thermal Properties

Reference data for High-Thermal Grade AlN at room temperature

PropertyTest MethodUnitValue
DensityISO 2738g/cm³3.28
Flexural StrengthISO 14704MPa310
Young's ModulusISO 17561GPa310
Vickers HardnessISO 6507HV0.5≥ 1000
Fracture ToughnessISO 23146MPa·m½2.5 - 3.0
Thermal ConductivityISO 22007W/m·K180
Coefficient of Thermal ExpansionISO 11372x10⁻⁶/K4.5
Dielectric StrengthIEC 60243kV/mm≥ 15
Volume ResistivityIEC 60243Ω·cm> 10¹⁴
Max Service TemperatureContinuous°C1400

Why Engineers Select Aluminum Nitride: Property-to-Function Relationships

How material properties translate into engineering performance for precision ceramic components

High Thermal Conductivity (170-190 W/m·K)

→ Efficient Heat Transfer

Transfers heat from power devices while maintaining electrical insulation, approaching metal-like thermal performance in dielectric substrate applications.

Silicon-Compatible CTE (4.3-4.6 ×10⁻⁶/K)

→ Thermal Expansion Matching

Reduces thermal stress in silicon chip carriers and power module packaging, improving reliability during temperature cycling.

High Volume Resistivity (> 10¹⁴ Ω·cm)

→ Electrical Isolation

Maintains dielectric isolation at high frequencies, suitable for RF infrastructure and power electronics substrates where signal integrity is critical.

Low Dielectric Constant (εr ≈ 8.8)

→ High-Frequency Performance

Minimal dielectric loss at microwave frequencies supports RF wireless infrastructure and high-speed electronic packaging applications.

Precision Machining Considerations for AlN

Manufacturing capabilities and engineering considerations specific to aluminum nitride ceramics

±0.003 mm Dimensional Control

Ultra-precision grinding and lapping achieving tight tolerances critical for chip carrier flatness and thermal interface contact.

Thin Substrate Processing

Machining of thin AlN substrates (down to 0.3 mm thickness) without fracture, enabled by optimized fixturing and stress-free grinding parameters.

Metallization-Ready Surfaces

Ra 0.05 μm surface quality ensures reliable thick-film or DBC (Direct Bonded Copper) metallization adhesion for power module assembly.

Micro-Via & Through-Hole Drilling

Diamond micro-drilling for thermal vias and electrical feedthroughs down to Ø 0.2 mm with clean edges and minimal chipping.

Large-Format Plate Grinding

Precision surface grinding of large AlN plates (up to 200mm x 200mm) with parallelism ≤ 0.005 mm for uniform thermal distribution.

Complete Traceability Documentation

Full FAI/OQC reports including thermal conductivity verification, dimensional datasheets, and material certificates (MTR/CoC).

Inspection & Verification for AlN Components

Matching component features to appropriate inspection methods ensures dimensional accuracy and surface quality

Component FeatureInspection MethodCapability
Flatness / Parallelism (≤ 0.005 mm)Flatness MeasurementOptical flat for substrate verification
Critical dimensions (±0.003 mm)CMM / Video MeasurementFull 3D coordinate measurement
Surface finish (Ra 0.05 μm)Roughness MeasurementContact profilometry for metallization prep
Thin substrate thicknessMicrometer / CMMPrecision thickness measurement
Micro-via holes (Ø 0.2 mm)Video Measurement SystemNon-contact optical hole measurement
Height / Step dimensionsTrimos Height GaugePrecision vertical measurement

Engineering Considerations

Achievable tolerance, surface finish, and feature size depend on:

  • Material grade
  • Part size
  • Geometry complexity
  • Feature location
  • Aspect ratio
  • Surface requirements
  • Inspection method
  • Batch quantity

Validate Your Aluminum Nitride Component Design with Korecera

Submit your 2D engineering blueprints or 3D CAD files (.STEP / .IGS) below. Our expert engineering team will conduct an in-depth Design-for-Manufacturability (DFM) review and deliver a competitive direct-factory quote. Fast-track prototyping completed within 7-10 business days. Full FAI, OQC, and material traceability reports provided upon delivery.

🔒
